RTU SuperE32 Compact RTU


SuperE32 is a series of compact RTU that brings advanced automation capabilities and open programming to applications requiring less I/O points. It is built on a high performance 32-bit processor with embedded real- time operating system to meet all monitoring and control requirements.

  • Product Introduction
  • Product Parameters

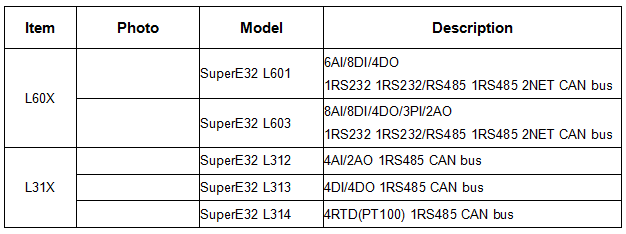

  • Product Selection
  • Product Applicaton and Performance

Overview

Equipped with functions such as data collection, output control of field signals, data processing, PID calculation and network communication.SuperE32 offers an open programming environment that supports all IEC61131-3 languages. It is also well suited for various harsh environments.

Product features

★  High performance 32-bit CPU with embedded real-time operating system (RTOS)

★  Compact design with up to 25 I/O points and 4 communication interfaces

★  16-bit A/D

★  Extensive communication protocols such as Modbus RTU/ASCII/TCP, DNP3

★  Open programming environment that supports all IEC61131-3 languages including LD, FBD, IL, ST and SFC

★  Support WEB announcement

★  Built-in watchdog timer helps to protect your application from erroneous outputs

★  Large storage space, meeting the requirement of field calculation and historical data record

★  All the terminal blocks are isolated from the main control circuit.

★  Low power consumption design, ideally for solar-powered installations

★  Wide operating temperature range, well suited for harsh environment applications: -40~+70℃

★  Pass CE certification and support EMC level 3 standard

★  Industry-standard design, using DIN rail for mounting, easy to install on-site

★ Support DI-LAN-redundancy
