RockE50 Safety RTU

Product Introduction
Product Parameters
Product Selection
Product Applicaton and Performance

System Structure diagram

RockE50 is usually configured with one Safety Processing Unit (SPU) and one Safety Extension Unit (SEU). SPU executes application logic, and SEU is used to increase the number of I/O channels.


Features

◆ SIL2 certified by TüV Rheinland

◆ High reliability with dual cores design for all processor module and IO modules

◆ High availability with power supply redundancy, processor redundancy, internal communication redundancy and IO redundancy

◆ Modular design, can be easily adapted to your changing needs

◆ Fast processing speed with 220MHz CPU frequency, response time＜150ms

◆ Scalable up to 112 I/O points

◆ Using ISaGRAF programming software, Supporting 4 programming languages in compliance with IEC61131-3, including LD, FBD, ST and SFC

◆ Capable of connecting with third-party I/O devices

◆ Integrated wiring fault diagnostics

◆ Well suited for harsh environment

◆ Operating temperature: - 40 ~ +70℃

◆ Operating humidity: 5~95%RH

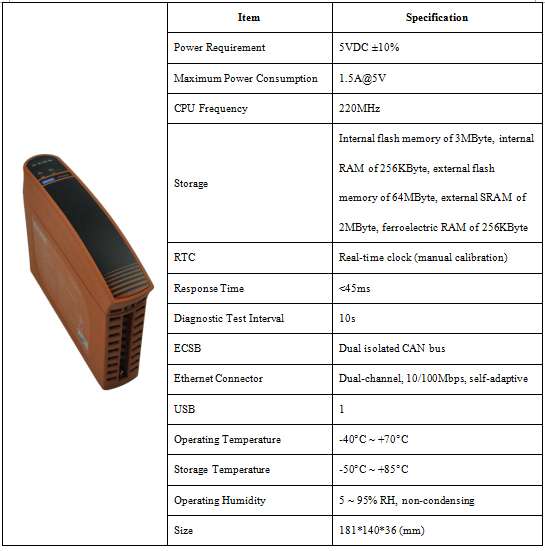

Processor Module FSC5501

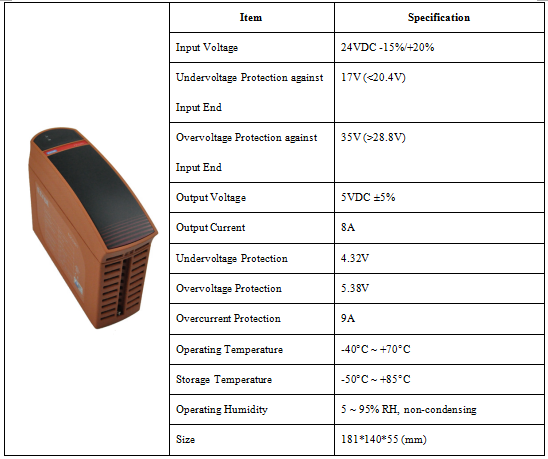

Power Supply Module FSC5201

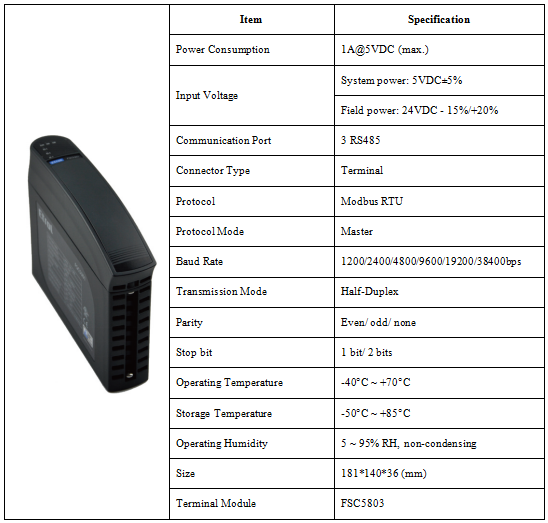

Communication Module FSC5301

Analog Input Module FSC5101

Digital Input Module FSC5112

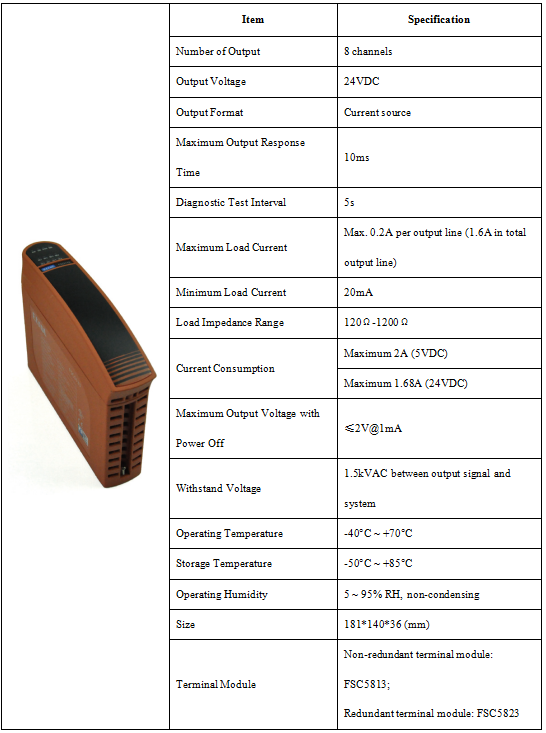

Digital Output Module FSC5133

Item	Model	Description
Processor Module	FSC5501	Processor module (2 Ethernet, 1USB)
Power Supply Module	FSC5201	Power supply module (24VDC input, 5VDC output)
Communication Module	FSC5301	Communication Module with 3 RS485 ports
I/O Module	FSC5101	8 Analog input channels (4-20mA)
	FSC5112	8 Digital input channels
	FSC5133	8 Digital output channels
Backplane	FSC5801	Main backplane for Safety Processing Unit
Backplane	FSC5802	Extended backplane for Safety Extension Unit
Terminal Module	FSC5811	AI terminal module
	FSC5821	AI redundancy terminal module
	FSC5812	DI terminal module
	FSC5822	DI redundancy terminal module
	FSC5813	DO terminal module
	FSC5823	DO redundancy terminal module
	FSC5803	Communication terminal module
Accessories	FSC5000	Empty slot module
Accessories	FSC5800	Empty slot terminal module
Software	RockESet	Configuration software tool for RockE50 Safety RTU
Software	Workbench	Application logic development software tool for RockE50 Safety RTU

In compliance with IEC61508, IEC61131-2, IEC61511, EN54, EN50130 and certified by TüV Rheinland, RockE50 Safety RTU is specifically developed for uses in SIL2 applications, such as Emergency Shut Down System (ESD) and Fire & Gas System (F&G), etc. To protect your assets and improve your plants performance, it offers redundancy for all safety-related modules to increase availability in critical applications in oil & gas, pipelines, petrochemical, gasworks, pharmaceuticals, metallurgy, electric power and subway, etc. The flexible redundancy enables you to customize the system to meet your Safety Instrumented System (SIS) project needs, which can optimize the hardware configuration to improve system efficiency and save cost.
